MP3423GG-P
Manufacturer:
Monolithic Power Systems
Mfr.Part #:
MP3423GG-P
Datasheet:
Description:

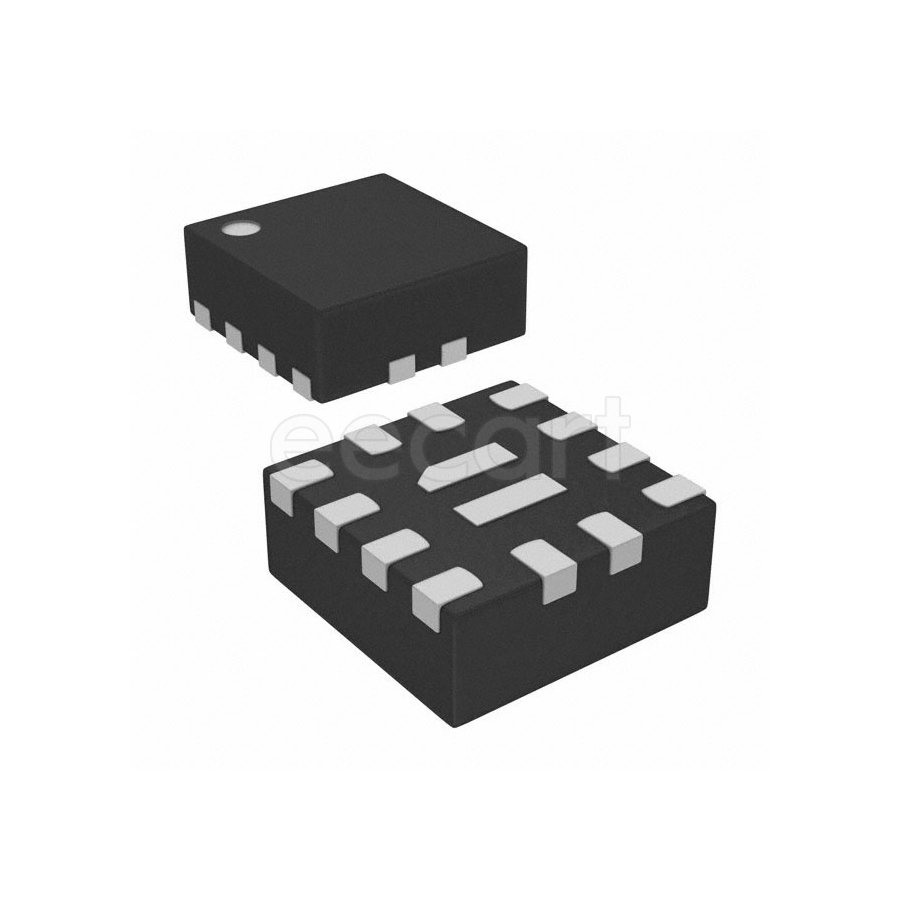

Voltage Regulators - Switching QFN-14 SMD/SMT Boost Adjustable 5.5 V
| Parameter | Value |
|---|---|
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 14 |
| Packaging | Reel |
| Radiation Hardening | No |
| RoHS | Compliant |
| Weight | 32.205058 mg |
| Contact Plating | Tin |
| Min Input Voltage | 1.9 V |
| Output Current | 9 A |
| Output Voltage | 5.5 V |
| Operating Supply Voltage | 5.5 V |
| Output Type | Adjustable |
| Min Supply Voltage | 1.9 V |
| Max Output Current | 9 A |
| Operating Supply Current | 43 µA |
| Synchronous Rectifier | Yes |
| Output Configuration | Positive |
| Topology | Boost |
| Switching Frequency | 600 kHz |
| Max Input Voltage | 5.5 V |
| Number of Outputs | 1 |
| Min Output Voltage | 2.5 V |
| Max Output Voltage | 5.5 V |
| Function | Step-Up |
Stock: 3371
Distributors
pcbx
pcbxUnit Price$1.64574
Ext.Price$1.64574
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.64574 | $1.64574 |
| 10 | $1.22683 | $12.26830 |
| 25 | $1.12680 | $28.17000 |
| 50 | $1.06572 | $53.28600 |
| 100 | $1.00796 | $100.79600 |
| 300 | $0.95979 | $287.93700 |
| 500 | $0.91392 | $456.96000 |
| 1000 | $0.87630 | $876.30000 |
| 3000 | $0.86986 | $2609.58000 |
| 5000 | $0.86348 | $4317.40000 |
